Product Introduction:

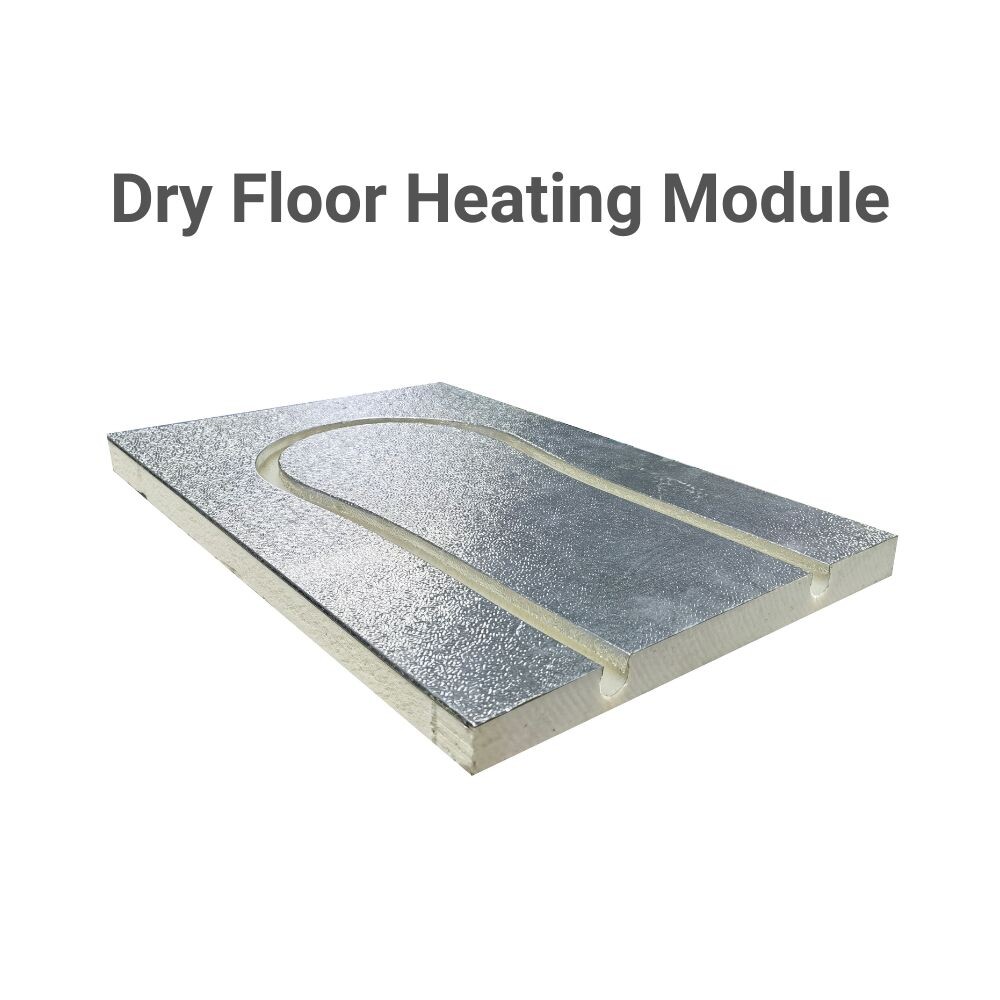

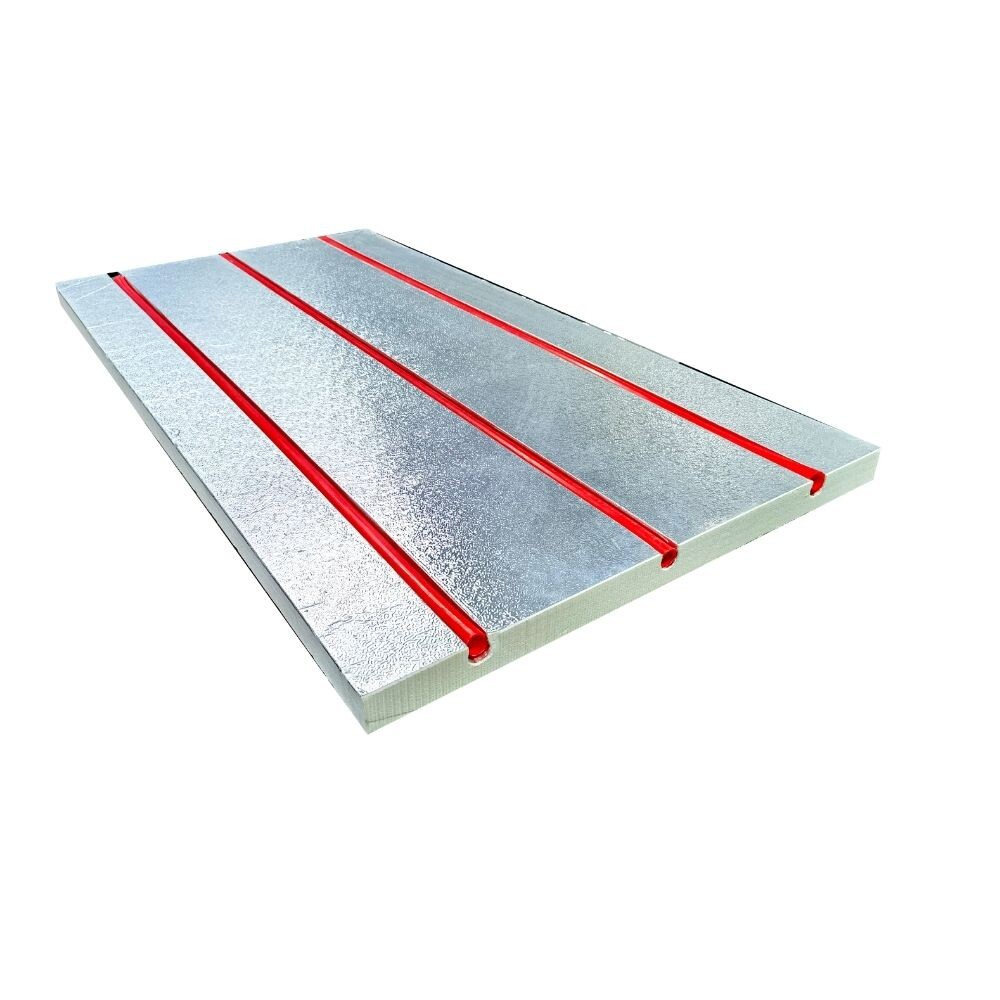

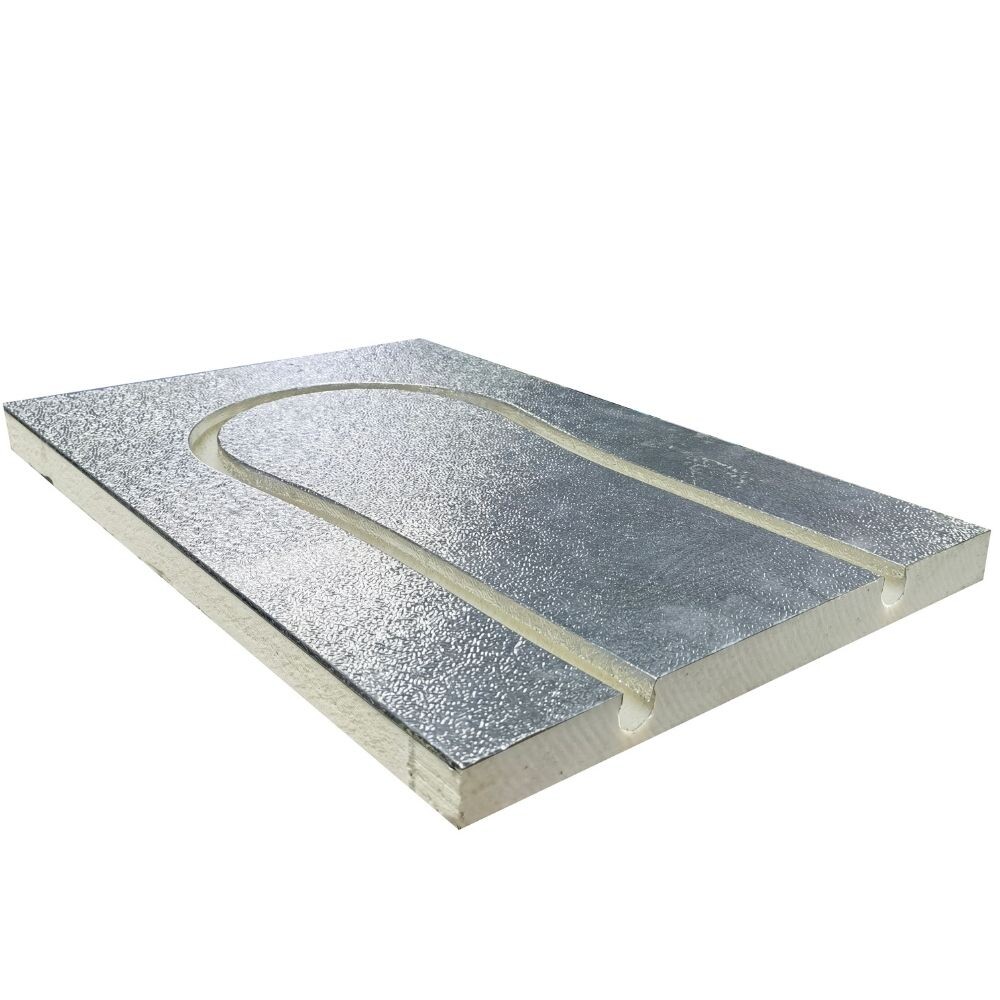

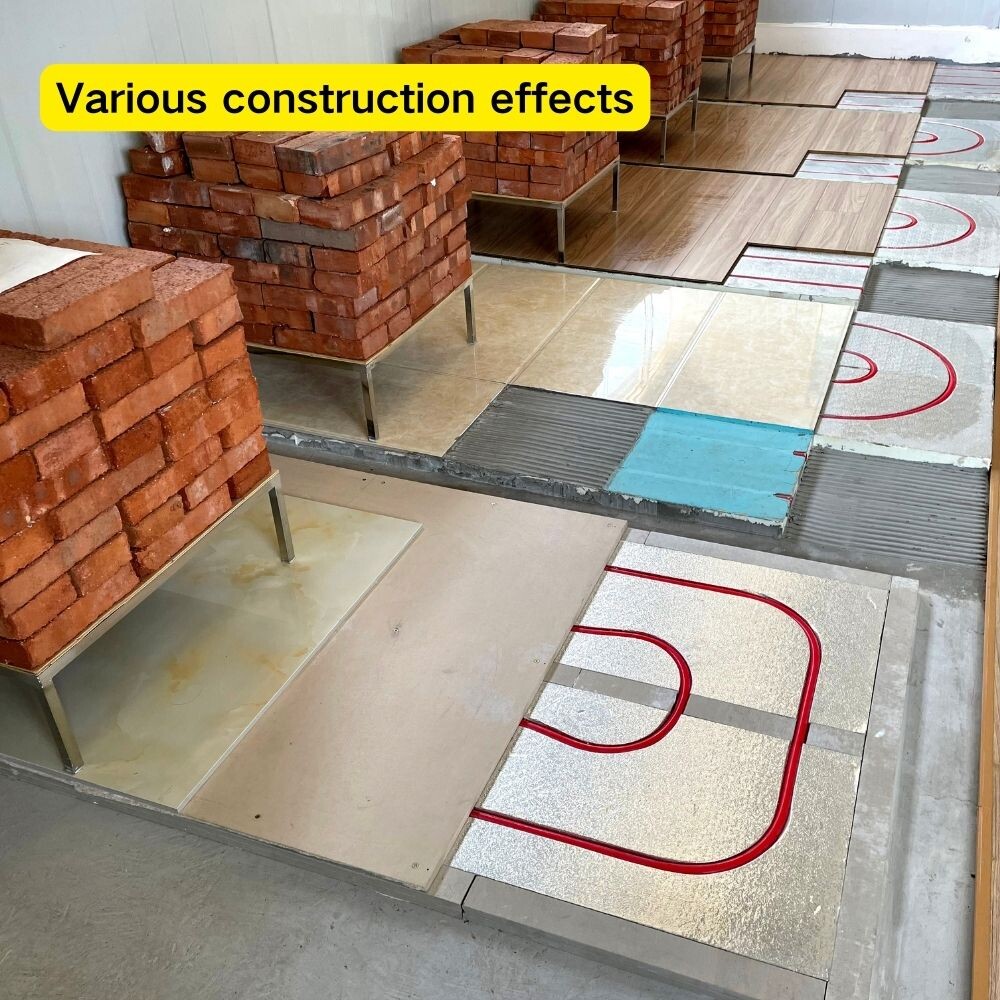

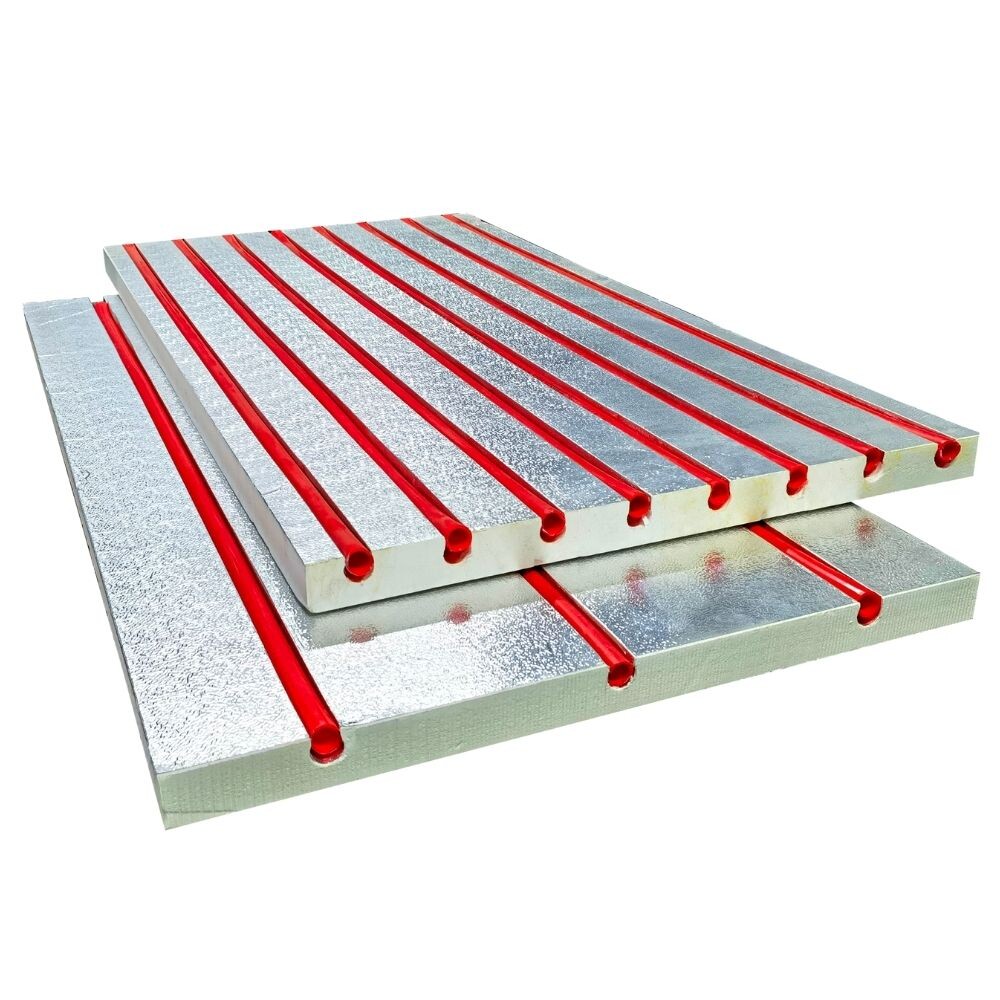

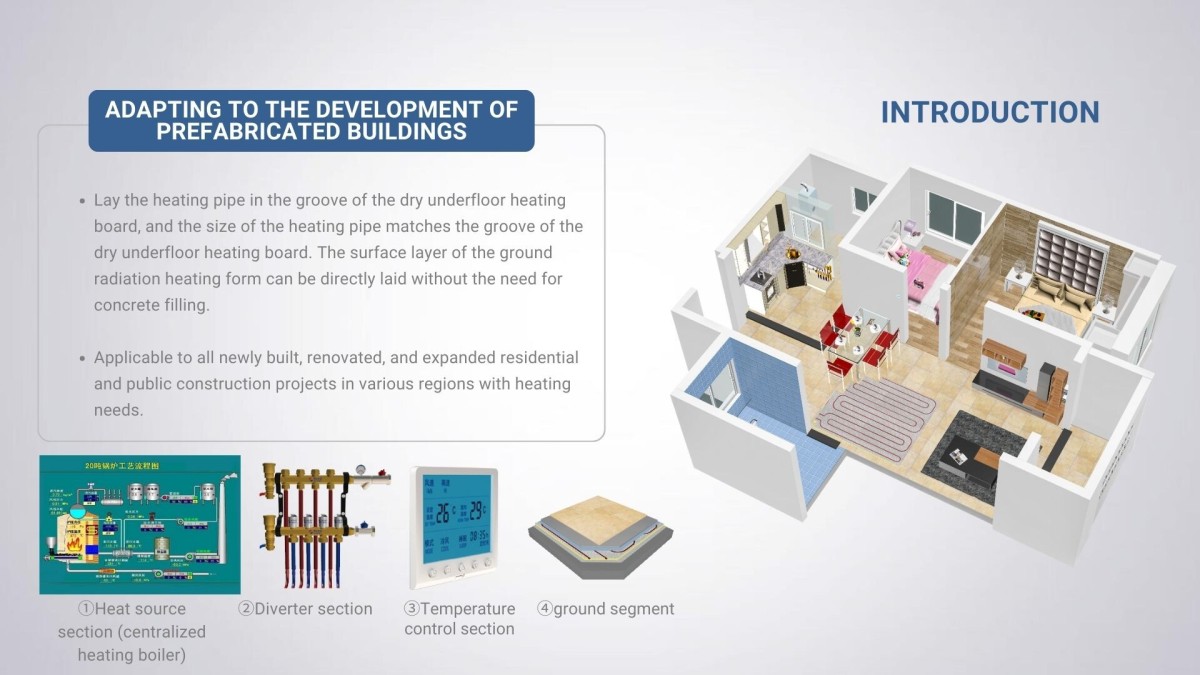

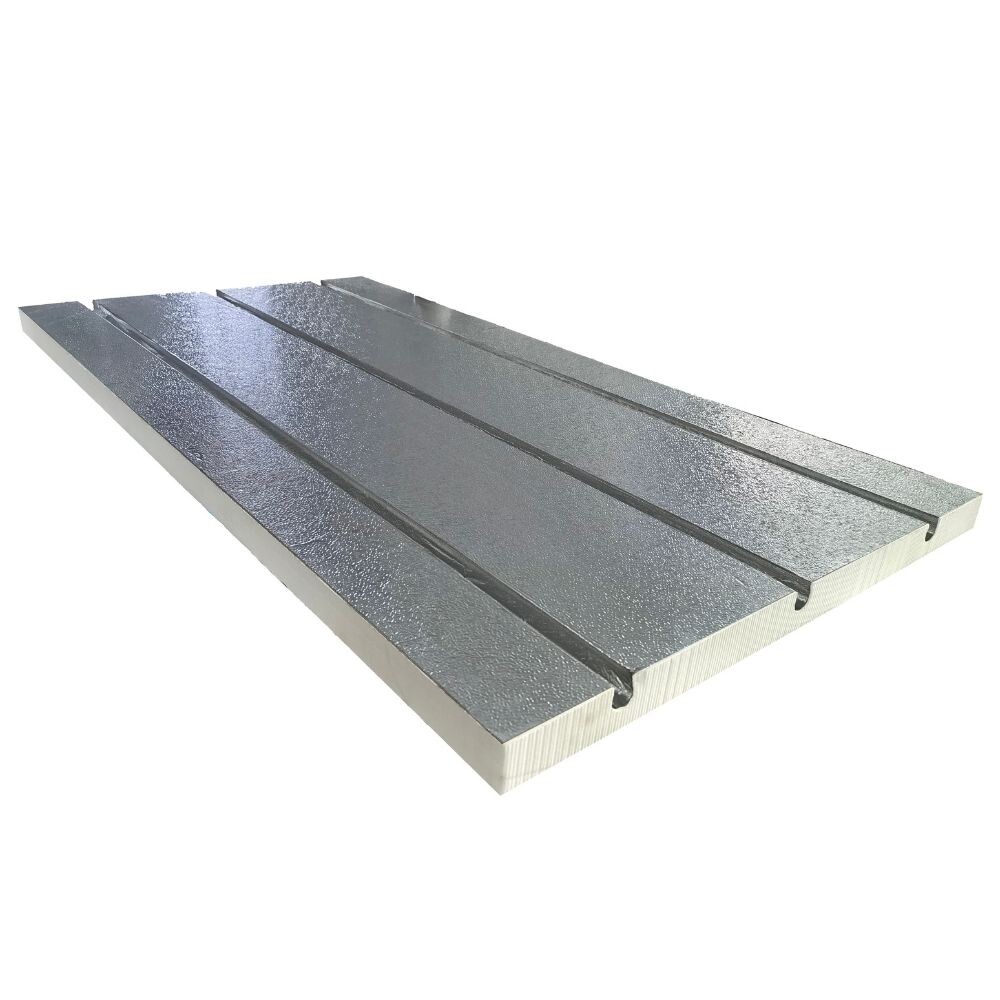

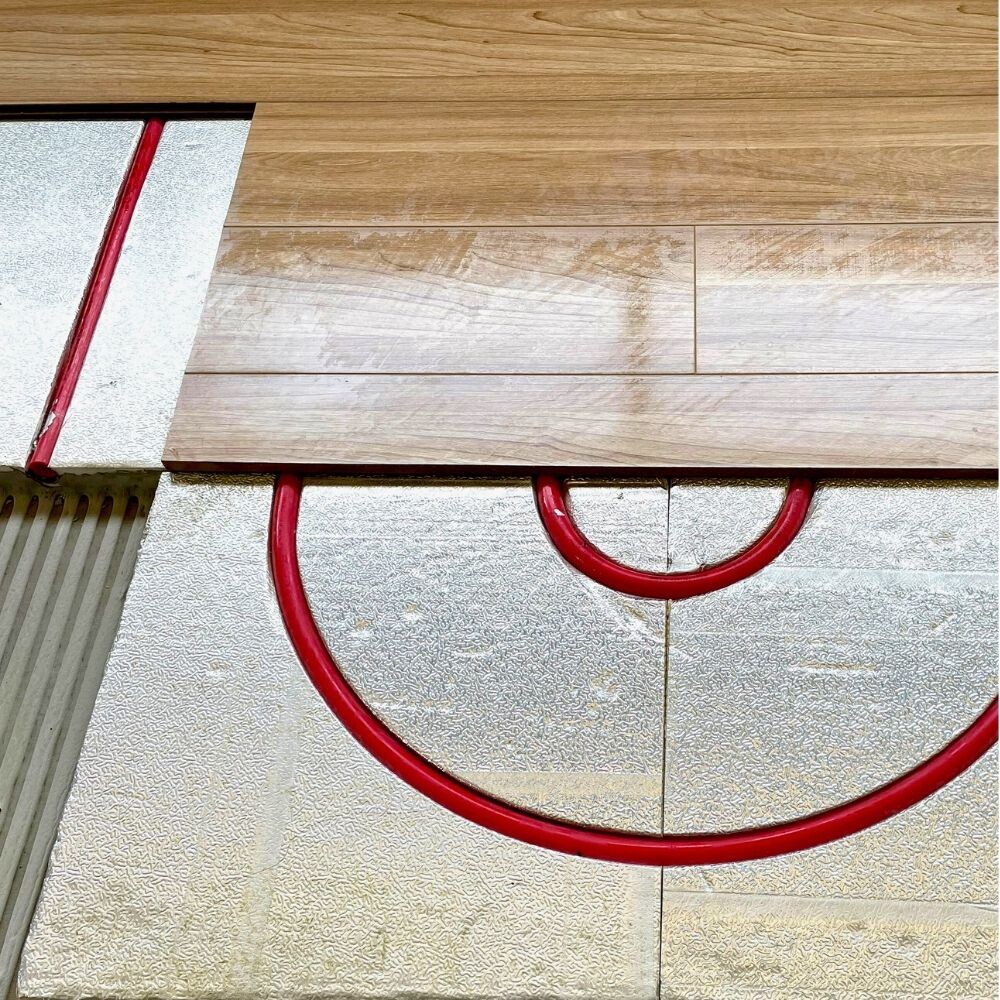

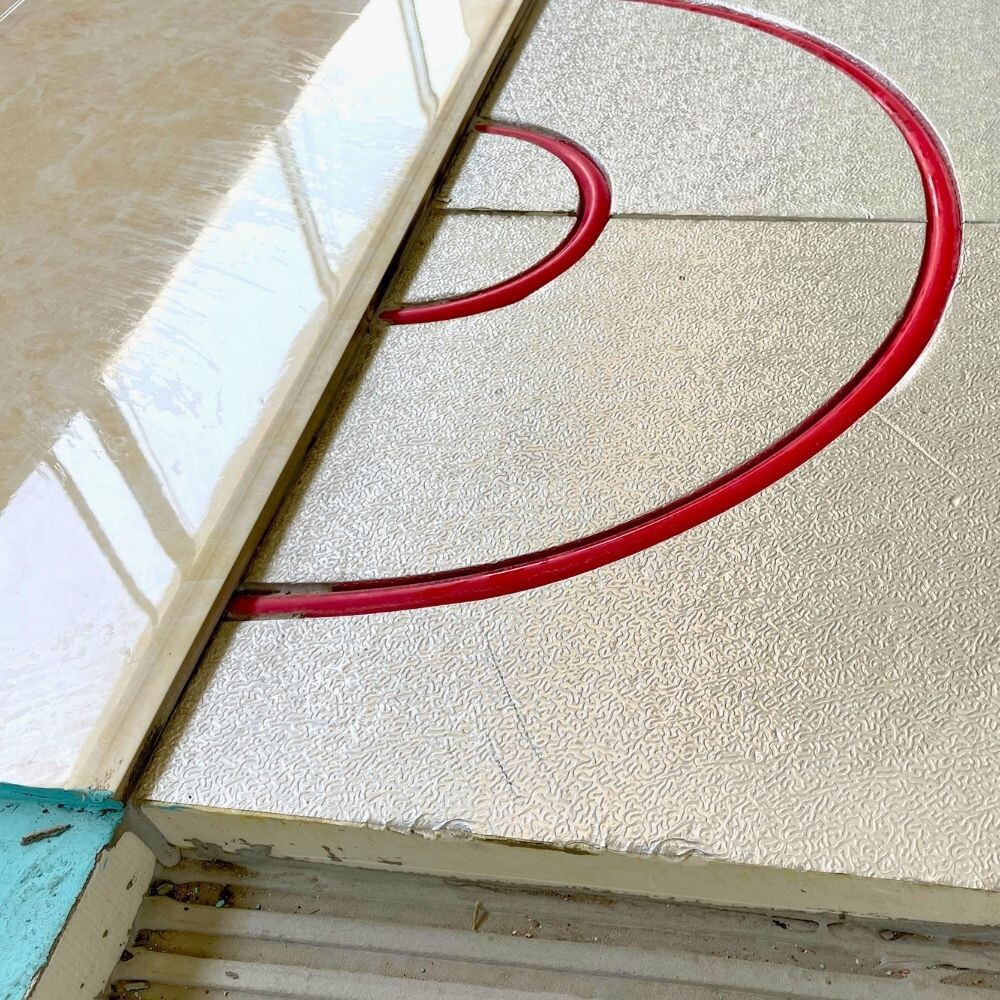

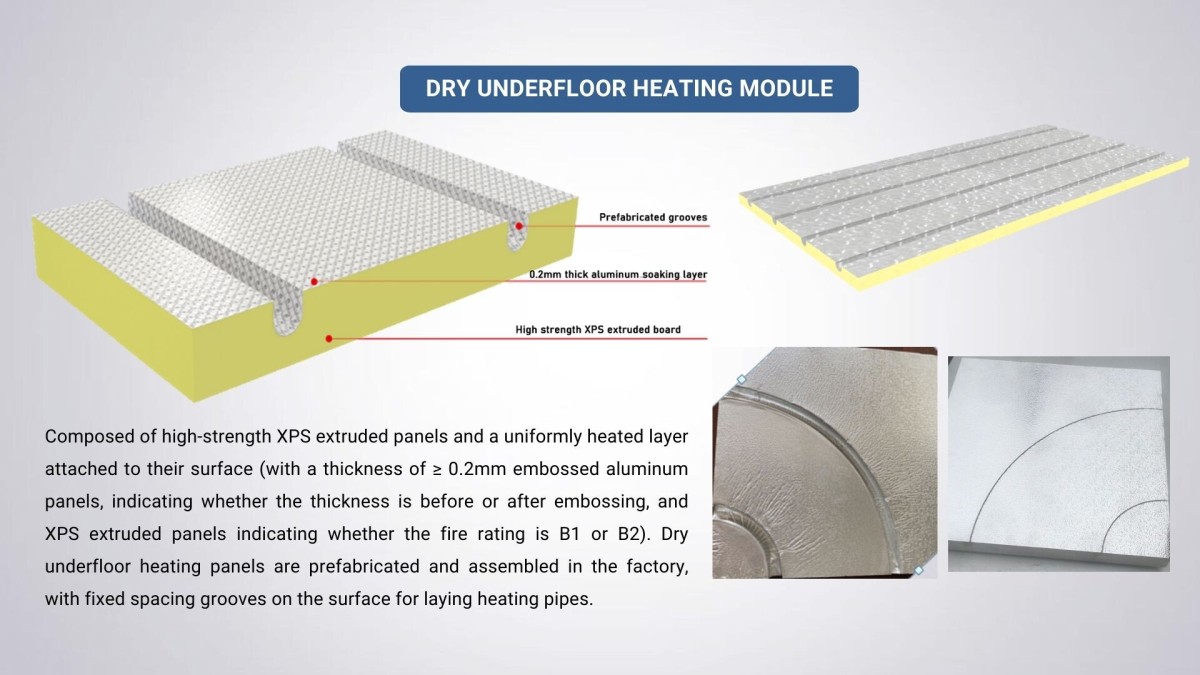

Dry-type underfloor heating modules, abbreviated as prefabricated groove dry-type underfloor heating modules, integrate heating pipes securely within insulation board grooves to ensure uniform heat distribution. This system serves as a crucial end-point for underfloor heating systems, replacing traditional materials like insulation boards, reflective films, and clips. It eliminates the need for cement backfill, allowing direct installation of tiles or flooring. These modules simplify installation procedures, reduce underfloor heating thickness, minimize downward heat loss, and enhance energy efficiency.

Product Advantages:

1. Rapid Heating Effect

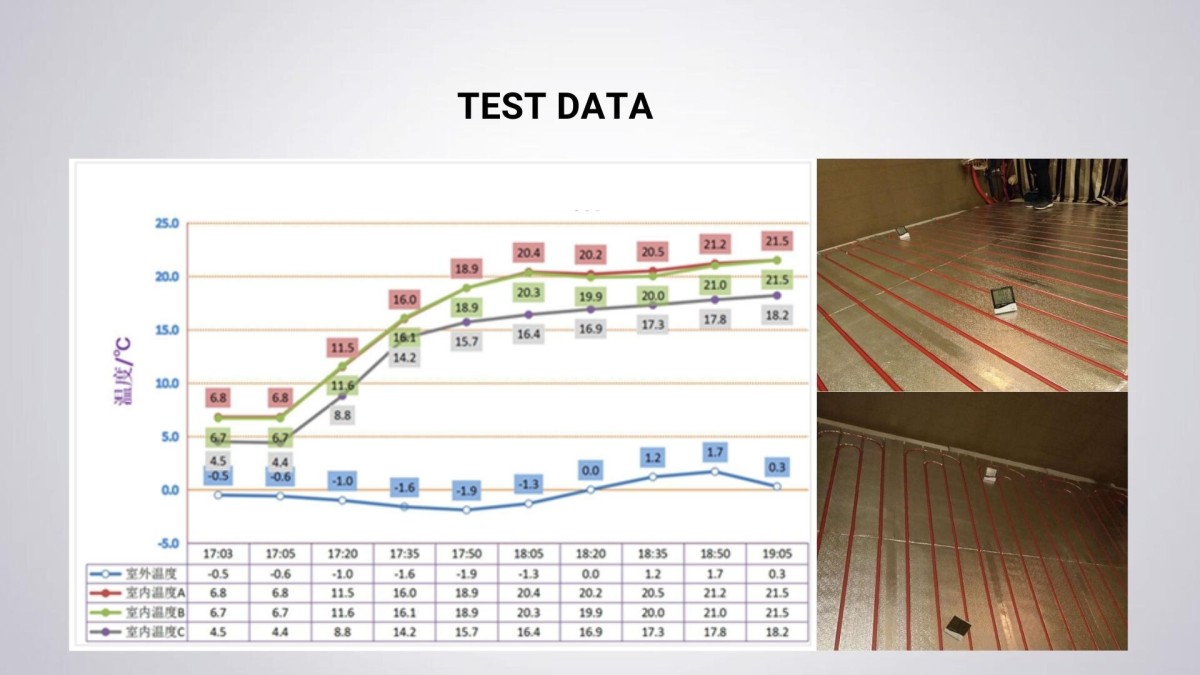

   By directly laying underfloor heating flooring on dry-type modules, heat radiation, conduction, and convection are organically combined, achieving the designed heating temperature (above 18 degrees Celsius) within 30-50 minutes.

2. Space-Saving

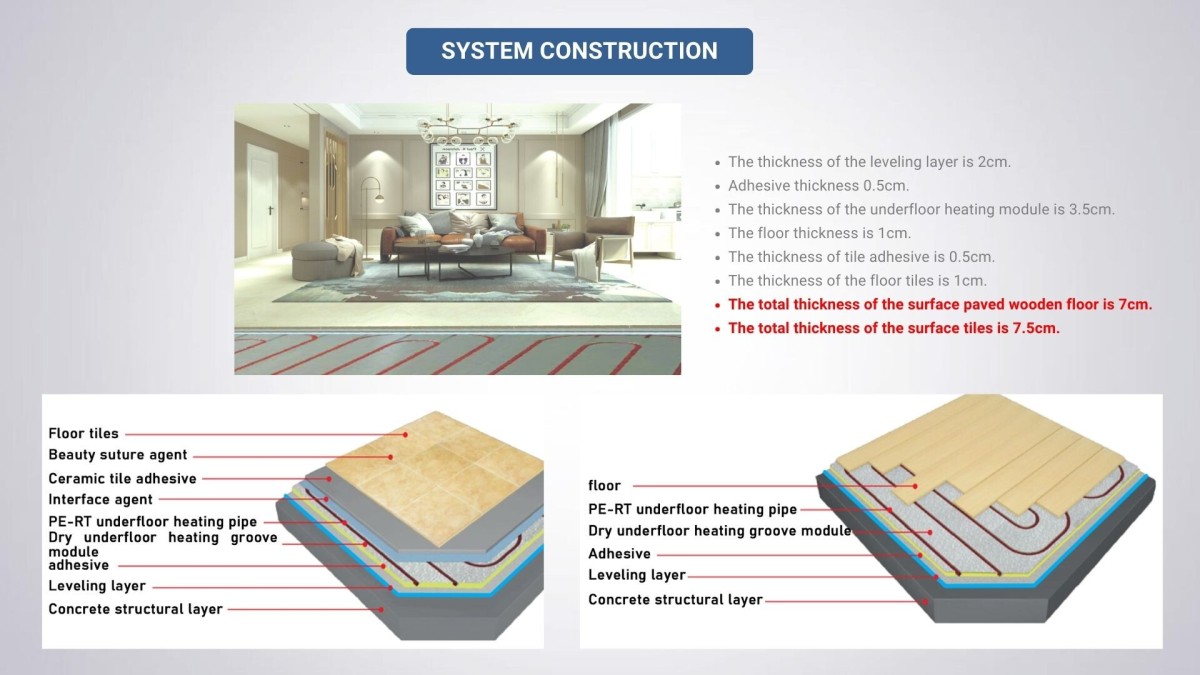

   Wet-type underfloor heating systems require a floor height increase of 12 cm, while dry-type systems fit within the floor gap at a height of 3.3 cm, maintaining floor comfort without affecting room height.

3. Energy Efficiency and Comfort

   Gradual temperature decrease from bottom to top ensures a balanced heat gradient, saving approximately 20% more energy than radiator systems. This setup provides a comfortable feeling of cool head and warm feet, theoretically promoting health and hygiene.

4. Simple Installation

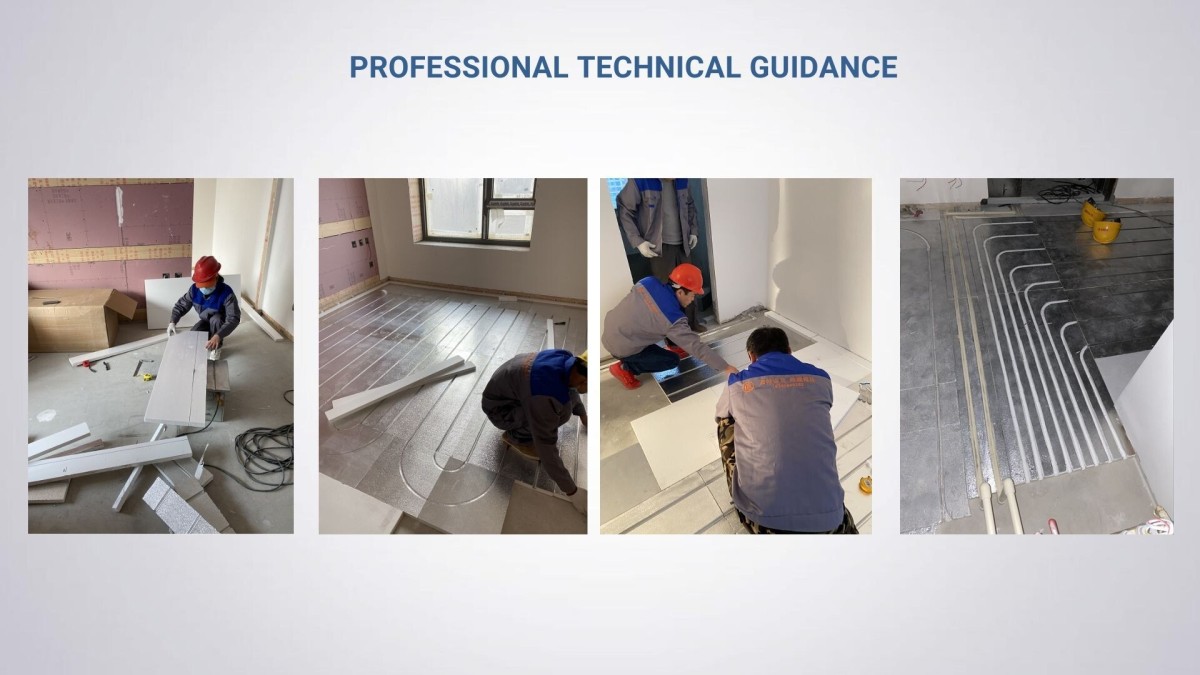

   Employing advanced module technology eliminates the need for concrete pouring in underfloor heating layers, significantly streamlining complex installation processes. This approach not only saves labor and materials but also shortens construction periods by nearly five times, enabling installation the day before flooring, ensuring quick and ready-to-use setup.

5. Reliability and Longevity

   Installation involves specialized underfloor heating modules and pipes, eliminating leakage risks associated with sectional coils. The system boasts reliable quality with an operational lifespan of up to 50 years.

6. Excellent Insulation

   The AirBond ultra-thin underfloor heating module provides air insulation, featuring linear linkages at the module's bottom and retaining partial gaps to reduce the medium required for heat transfer. Additionally, a 3 mm reflective film at the module's bottom forms a sealed space, creating an insulation layer second only to vacuum insulation.
